Directional drilling (DD)

CHIMTEC Research and Production Association LLC has expanded its operations to provide telemetry support for well drilling and rent out its own telemetry equipment.

The telemetry support team includes specialists with extensive experience in providing high-quality directional drilling services.

The company has equipment capable of supporting uninterrupted wellbore drilling and meeting any customer requirements.

Comprehensive support

Services

Illustration: Trajectory design

Engineering calculations

Trajectory design and assessment of collision risks with nearby wellbores. Load, torque and hydraulics calculations. Bottomhole assembly (BHA) selection.

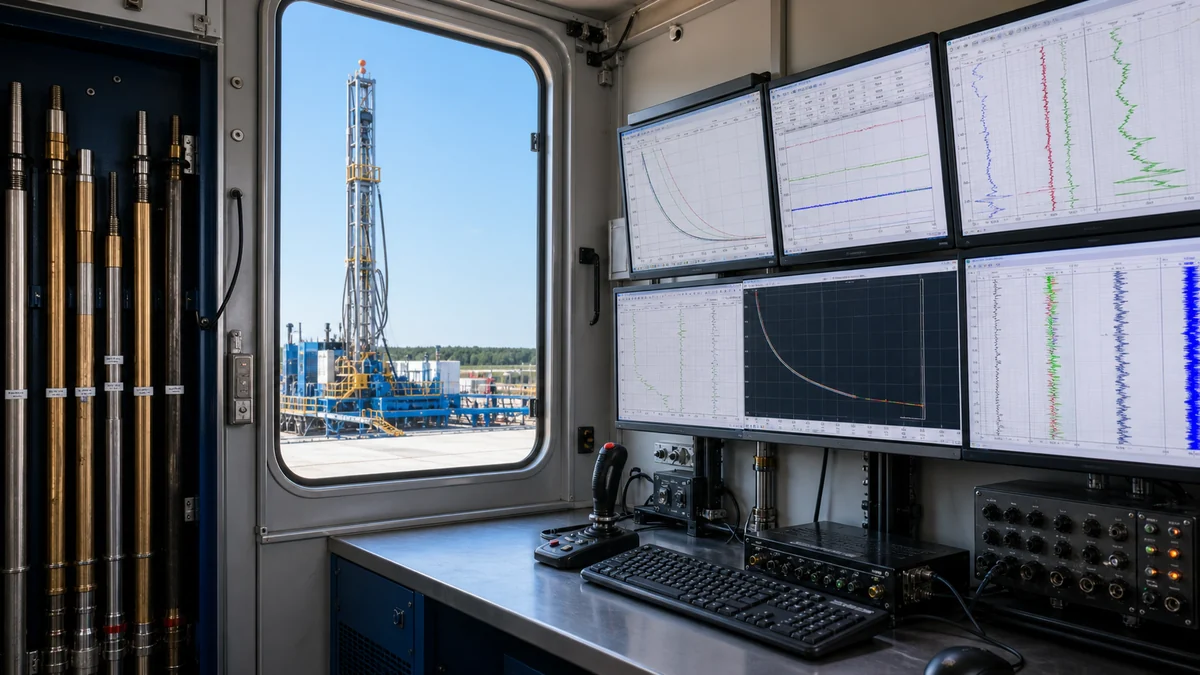

Illustration: Surface monitoring

MWD telemetry

Determining the position of the downhole tool. Transmitting data to the surface through a hydraulic or electromagnetic telemetry channel. Comparing the actual trajectory with the planned trajectory.

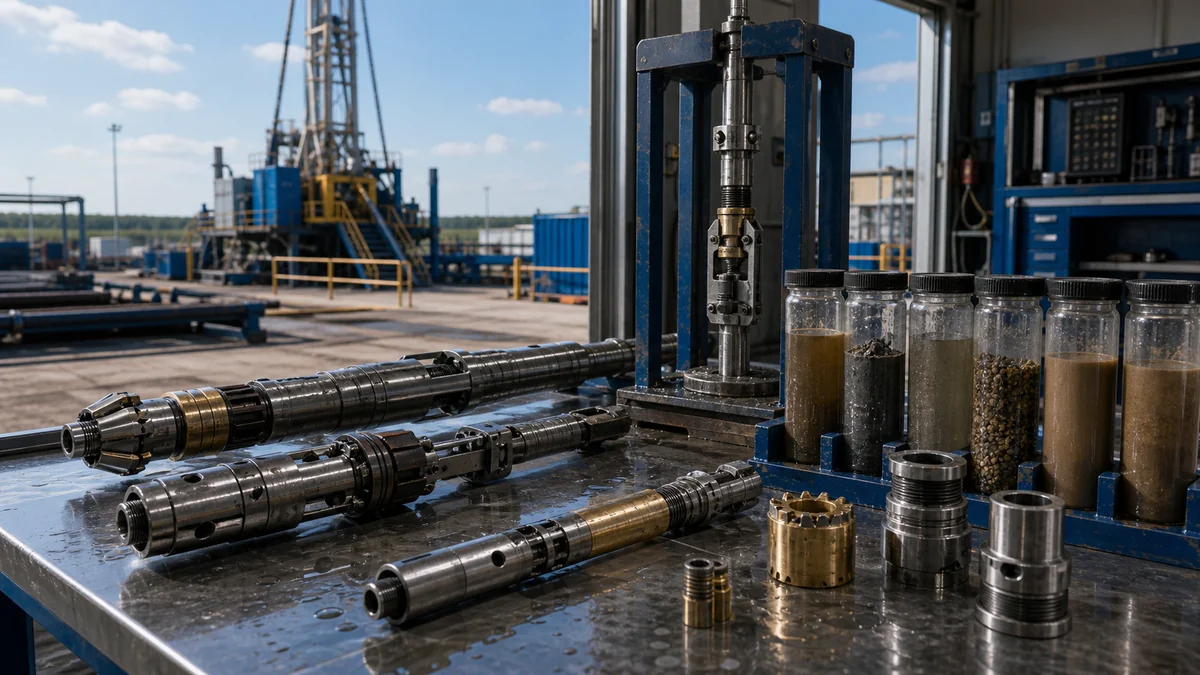

Illustration: Equipment preparation

On-site support

Directional drilling and telemetry engineers working at the wellsite. Monitoring parameters and coordinating with the drilling crew and technical team.

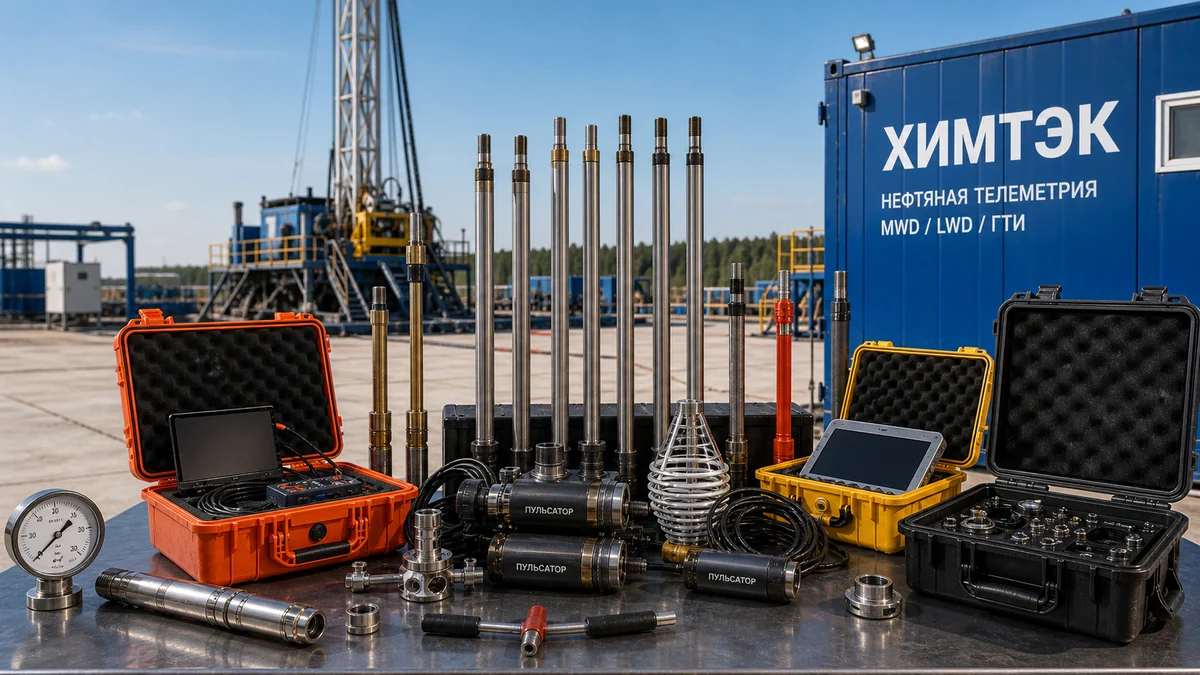

Illustration: Telemetry equipment

Company-owned equipment

The company’s own telemetry systems. The equipment package and engineering support are agreed according to the technical specification and operating conditions.

Services and technical specifications

Directional drilling presentation

Download the presentation (PDF, 10.9 MB, in Russian)

Slides 2 and 3 are in English. The other slides are in Russian.

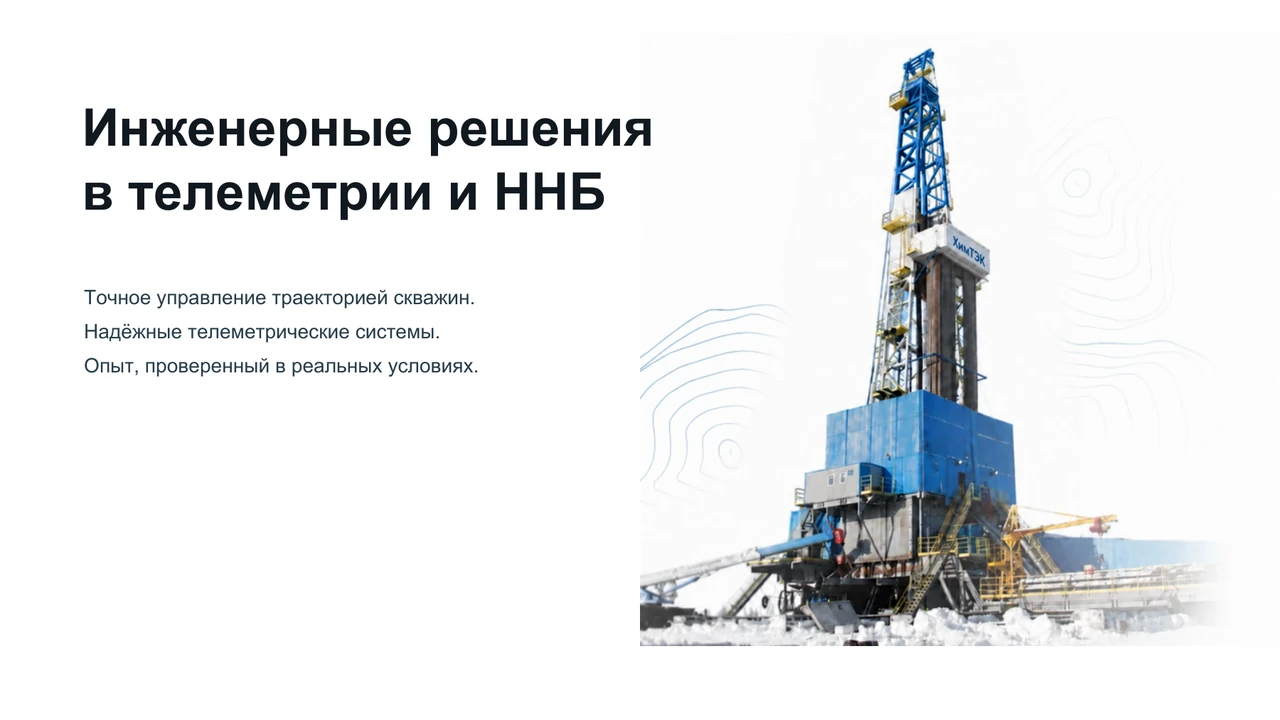

Illustration: Slide 1. Engineering solutions in telemetry and directional drilling
Slide 1 of 12. Engineering solutions in telemetry and directional drilling

Work planning

Support stages

  1. Initial information

    The planned trajectory, well design, operating conditions and schedule.

  2. Engineering preparation

    Trajectory, loads, hydraulics and equipment selection.

  3. Wellsite operations

    Telemetry, parameter monitoring and coordination with the drilling crew.

  4. Documentation

    Measurement data and technical materials for the agreed scope of work.

Illustration: Directional well
Directional well

Telemetry equipment

The telemetry and auxiliary equipment configuration is determined by the well design and the drilling conditions for each project.

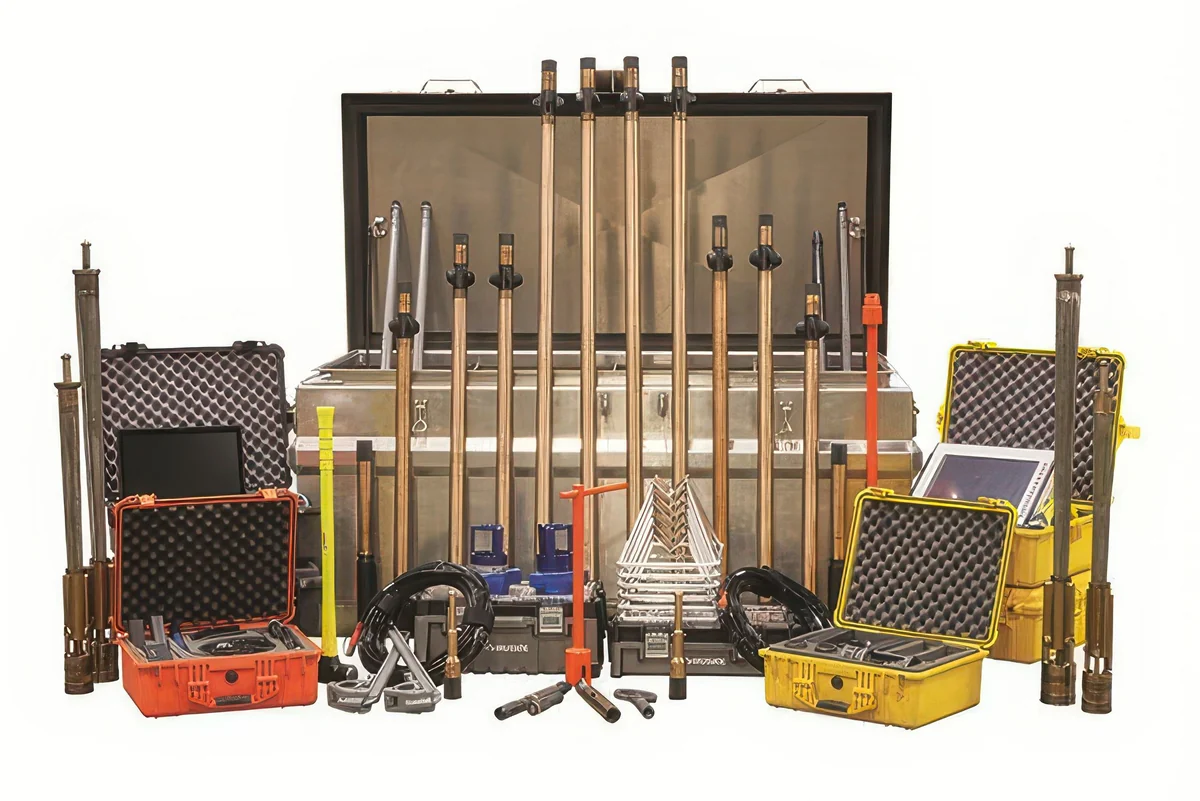

MWD equipment package: telemetry modules, surface equipment and transport cases
MWD telemetry equipment package
Telemetry system
Hydraulic and electromagnetic data transmission channels.
Non-magnetic drill collars
95–203 mm
Positive-displacement downhole motors
76–240 mm
Drill bits
120.6–393.7 mm
Drilling jars
120–203 mm
Oscillators
106–172 mm
Line charts of inclination (cINC) and azimuth (cAZM) over time
Inclination (cINC) and azimuth (cAZM) over time

Inclination and azimuth while drilling. Remote control and monitoring.

View the presentation

Before work starts

Questions about support

What information is needed to prepare a proposal?

The work location and schedule, planned trajectory, intervals and diameters, drilling fluid parameters and expected temperatures. This information helps determine the equipment package and support required.

Can telemetry equipment be rented?

Yes. The company rents out its own telemetry systems. The equipment package and engineering support are agreed according to the technical specification.

Is remote support available?

Remote monitoring and technical support are possible with a stable internet connection. Communication arrangements and the working process are agreed before work starts.

What materials does the customer receive?

Measurement data and technical documentation within the scope agreed for the specific well and chosen support arrangement.

Let’s discuss your project

Send us your technical specifications or the key well parameters, and we’ll select the equipment you need and propose the best approach to engineering and telemetry support.
